User App Authentication

A user app can authenticate with fabric Identity in one of two ways:

Using Authorization Code Flow with PKCE (recommended)

This flow requires the following parameters (for more information, see the Getting Started guide):

client-id - A unique ID that represents the user app, and is required for OpenID Connect authentication flows.

Authorization Url - The fabric Identity HTTP endpoint that the user app communicates with to get its access token.

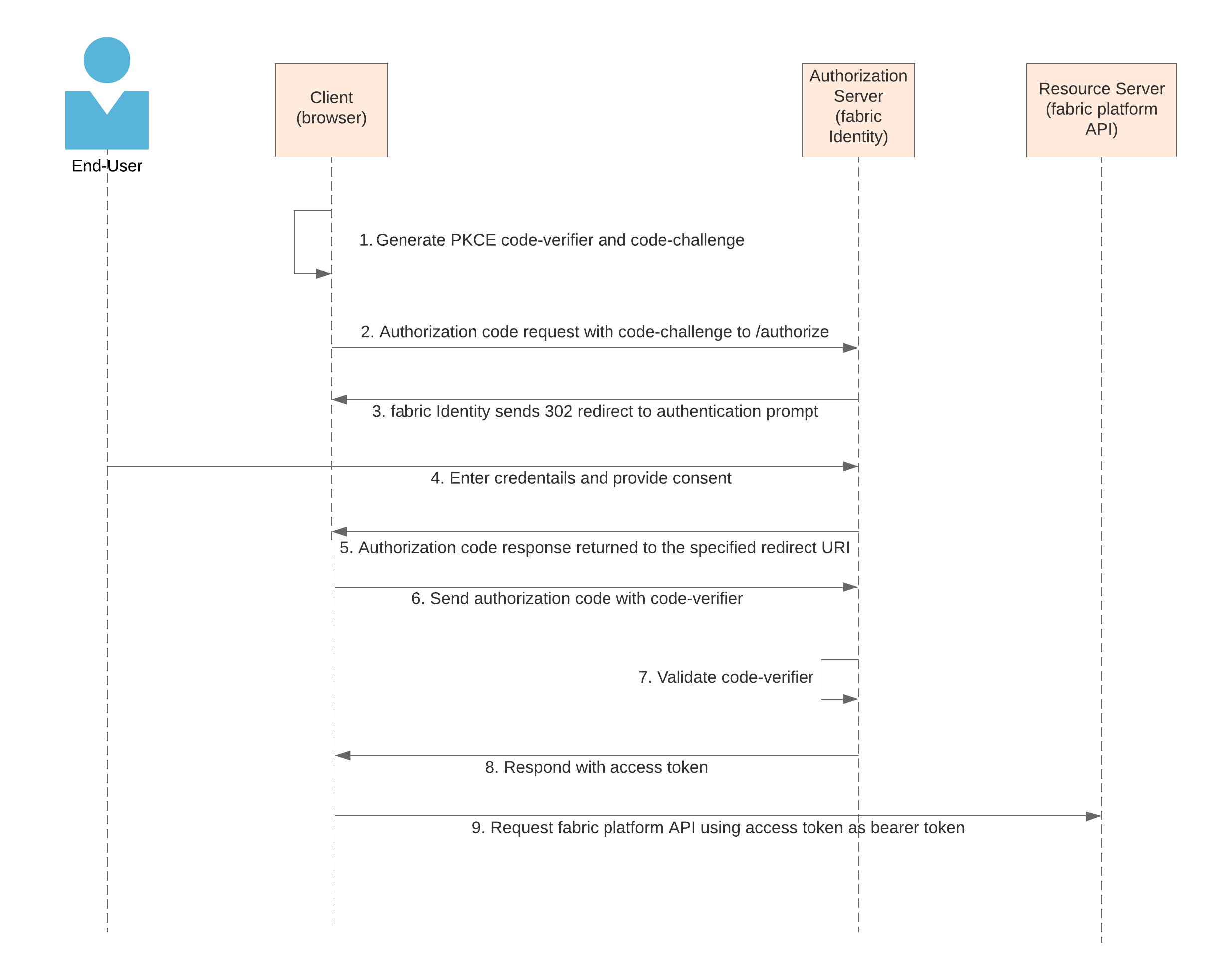

Once these are available, you can build the authentication flow as depicted below:

1. Generate PKCE code-verifier and code-challenge

In this step, the single page app or mobile app, represented by the respective user app in fabric Identity, generates a code-verifier, which you will use to generate the code-challenge. These codes ensure that the access token returned by fabric Identity (step 8) is returned to the correct requestor.

code-verifier: Random URL-safe string of at least 43 characters. Click here for more details.

code-challenge: Base64 URL-encoded SHA-256 hash of the code-verifier.

The app should store the code-verifier securely to be used later (step 6). The code-challenge is sent earlier in the call to the /authorize endpoint (step 2).

2. Authorization code request with code-challenge to /authorize

In this step, the app should send a GET request to fabric Identity’s /authorize endpoint and load the GET URL into the window.location. This allows fabric Identity to send a browser redirect, and take the end user to the hosted login page.

This is a representation of the URL that should be constructed and loaded into window.location:

https://${Authorization Url}/v1/authorize?client_id=${client-id}&response_type=code&scope=openid&redirect_uri=${redirect-uri}&state=${state}&code_challenge_method=S256&code_challenge=<sha256(${code-verifier})>

Authorization Url: The URL made available upon creating a user app. See Getting Started for more details.
client-id: A unique ID that represents the user app. See Getting Started for more details.
redirect-uri: The URI that fabric Identity redirects to after successful authentication. This should be a URI of the requesting user app and should contain a temporary authorization code (see step 5). The app should use the query parameters on the redirect-uri to complete the authentication flow with fabric Identity.
state: An opaque value (can be a random string) the app uses to maintain state between the request and callback from fabric Identity. This parameter is typically used for preventing cross-site request forgery. Click here for more information.
code_challenge: An SHA256 hash of the code-verifier. Click here for more details.

3. fabric Identity sends 302 redirect to authentication prompt

As a response to step 2, fabric Identity sends a redirect to the client browser to bring up the hosted login page. This hosted login page can also be configured for social logins, sign-up, and forgot-password links.

4. Enter credentials and provide consent

End users provide their credentials for authentication. If requested to do so, they will also indicate consent to have fabric Identity share their basic profile information with the calling app.

5. Authorization code response returned to the specified redirect URI

After a successful login, fabric Identity redirects the end user to the redirect-uri defined in step 2. As part of this redirect, fabric Identity sends the following additional details as query parameters:

code: A temporary authorization code which will be returned to fabric Identity along with code-verifier to get an access token.
state: The same state sent by the app to fabric Identity in step 2.

6. Send authorization code with code-verifier

Once the app receives the redirect from fabric Identity, it validates that the state field matches the one sent in step 2. After validation, the app fetches an access token by using the code to make a POST request to fabric Identity.

Example of the POST request (represented as a curl command):

curl --request POST \
  --url https://${Authorization Url}/v1/token \
  -H 'accept: application/json' \
  -H 'content-type: application/x-www-form-urlencoded' \
  -d 'grant_type=authorization_code'
  -d 'client_id=${client-id}'
  -d 'redirect_uri=${redirect-uri}'
  -d 'code=${code}'
  -d 'code_verifier=${code-verifier}'

Authorization Url: The URL made available upon creating a user app. See Getting Started for more details.
client-id: A unique ID that represents the user app. See Getting Started for more details.
redirect-uri: The same URI that the app originally sent to fabric Identity in step 2.
code: The authorization code received by the app in step 5.
code-verifier: The original code-verifier generated by the app in step 1.

7. Validate code-verifier

Once the POST request is received by the /token endpoint, fabric Identity validates the code-verifier by computing its SHA256 value, and verifying that against the code-challenge the app sent in step 2. If successfully validated, the endpoint returns the response, which includes the access token (next step).

8. Respond with access token

Upon successful code-verifier validation, fabric Identity returns the response with the access token:

{
    "access_token": "eyJhbGciOiJ...",
    "expires_in": 3600,
    "id_token": "eyJhbGciOiJI...",
    "refresh_token": "cBMrwDsXRwPqVmCQx7I5IX0jQ9-Lc_zHOgYeab1xZm4"
    "scope": "openid offline_access",
    "token_type": "Bearer"
}

The access_token returned in the response above is a user token that has a default expiration of 30 minutes (3600 seconds). This token is used by the app as a bearer token to access fabric APIs.

The response also contains a refresh_token, which the app can use to fetch a new access_token when previous one expires.

9. Request fabric platform API access using access token as bearer token

The app can now invoke any fabric API using the access_token received in the previous step. This token is sent in the Authorization header as a Bearer token, which is then validated by the fabric API.

App developers can use third-party libraries (Click here for an example) to achieve the authentication flows described above.

Using Authorization Code Flow

fabric recommends using authorization code flow only when lacking browser support for PKCE. Also, as this flow needs the user app to pass the client-secret, it’s essential that the app implements a backend for frontend (BFF) layer to exchange tokens with fabric Identity.

Ensure the following parameters are available before getting started with this authentication flow (for more information, see the Getting Started guide):

client-id - A unique ID that represents the user app, and is required for OpenID Connect authentication flows.

client-secret - An app-specific secret that allows fabric Identity to validate the user app.

Authorization Url - The fabric Identity HTTP endpoint that the user app communicates with to get its access token.

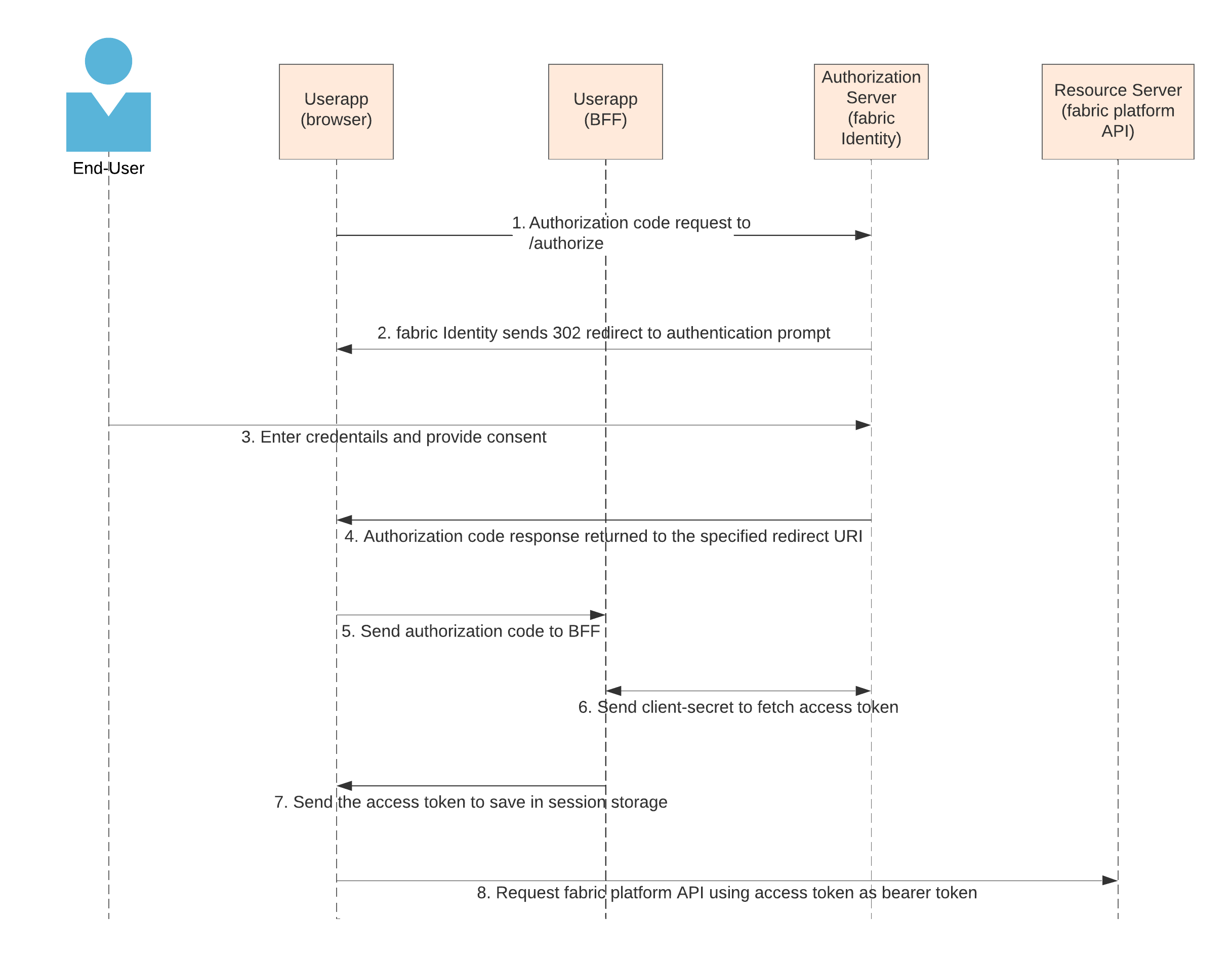

Once these are available, you can build the authentication flow as depicted below:

1. Authorization code request to /authorize

This is a representation of the URL that should be constructed and loaded into window.location:

https://${Authorization Url}/oauth2/default/v1/authorize?client_id=${client-id}&response_type=code&scope=openid&redirect_uri=${redirect-uri}&state=${state}

Authorization Url: The URL made available upon creating a user app. See Getting Started for more details.
client-id: A unique ID that represents the user app. See Getting Started for more details.
redirect-uri: The URI that fabric Identity redirects to after successful authentication. This should be a URI of the requesting user app and should contain a temporary authorization code (see step 4). The app should use the query parameters on the redirect-uri to complete the authentication flow with fabric Identity.
state: An opaque value (can be a random string) the app uses to maintain state between the request and callback from fabric Identity. This parameter is typically used for preventing cross-site request forgery. Click here for more information.
code_challenge: An SHA256 hash of the code-verifier. Click here for more details.

2. fabric Identity sends 302 redirect to authentication prompt

As a response to step 1, fabric Identity sends a redirect to the client browser to bring up the hosted login page. This hosted login page can also be configured for social logins, sign-up, and forgot-password links.

3. Enter credentials and provide consent

End users provide their credentials for authentication. If requested to do so, they will also indicate consent to have fabric Identity share their basic profile information with the calling app.

4. Authorization code response returned to the specified redirect URI

After a successful login, fabric Identity redirects the end user to the redirect-uri defined in step 1. As part of this redirect, fabric Identity sends the following additional details as query parameters:

code: A temporary authorization code which will be returned to fabric Identity. This code would be used in step 5 and 6 to finally fetch the access token.
state: The same state sent by the app to fabric Identity in step 1.

5. Send authorization code to BFF

The browser component of the user app sends the code (received in step 4) to the BFF (backend for frontend) component of the app. This is done so that browser loading JS files can avoid having the client-secret visible to the end user. This is a custom implementation done by the developer, as it’s a call between the browser and the BFF layer of their user app.

6. Send client-secret to fetch access token

The BFF layer of the user app sends the code (received in step 5) along with the client-secret to authorization server. Upon validating the client-secret, the authorization server sends the access token in the response of this call.

Following is an example of the POST request that’s made by the BFF layer to the authorization server:

curl --request POST \
  --url https://${Authorization Url}/v1/token \
  -H 'accept: application/json' \
  -H 'content-type: application/x-www-form-urlencoded' \
  -H 'Authorization: <base64(${client-id}:${client-secret})>
  -d 'grant_type=authorization_code'
  -d 'redirect_uri=${redirect-uri}'
  -d 'code=${code}'

Authorization Url: The URL made available upon creating a user app. See Getting Started for more details.
client-id: A unique ID that represents the user app. See Getting Started for more details.
client-secret - An app-specific secret that allows fabric Identity to validate the user app.
redirect-uri: The same URI that the app originally sent to fabric Identity in step 2.
code: The authorization code received by the app in step 5.

Upon successful validation of client-secret, fabric Identity returns the response that includes the access token:

{
    "access_token": "eyJhbGciOiJ...",
    "expires_in": 3600,
    "id_token": "eyJhbGciOiJI...",
    "refresh_token": "cBMrwDsXRwPqVmCQx7I5IX0jQ9-Lc_zHOgYeab1xZm4"
    "scope": "openid offline_access",
    "token_type": "Bearer"
}

The access_token returned in the response above is a user token that has a default expiration of 30 minutes (3600 seconds). This token is used by the app as a bearer token to access fabric APIs.

The response also contains a refresh_token, which the app can use to fetch a new access_token when previous one expires.

7. Send the access token to save in session storage

This is a custom implementation done by the developer ensuring that the access token is saved on the end user’s session store within the browser so that it can be used by the user app in all subsequent calls to fabric APIs.

8. Request fabric platform API using access token as bearer token

Refresh Access Token

User tokens generated by fabric Identity have a default expiration of 30 minutes. Refresh tokens, on the other hand are longer-living tokens and can be used to retrieve new access tokens without asking the end user to login again. For security reasons, every time a refresh token is used to get a new access token, the previous refresh token is discarded and a new one is created. Refresh tokens are also discarded if not used for seven days. If a refresh token expires, the app can follow the previous authentication flow and have the end user login again.

Sample call to get a new access token from a refresh token:

curl --location --request POST 'https://${Authorization Url}/v1/token' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'grant_type=refresh_token' \
--data-urlencode 'redirect_uri=${redirect-uri}' \
--data-urlencode 'scope=offline_access openid' \
--data-urlencode 'refresh_token=${refresh-token}' \
--data-urlencode 'client_id=${client-id}'

Authorization Url: The URL made available upon creating a user app. See Getting Started for more details.
client-id: A unique ID that represents the user app. See Getting Started for more details.
redirect-uri: The same URI that the app originally sent to fabric Identity in step 2.
refresh-token: Refresh token received by the app along with the access token.

Sample response sent from fabric Identity for the refresh request:

{
    "token_type": "Bearer",
    "expires_in": 3600,
    "access_token": "eyJraWQiO...",
    "scope": "offline_access openid",
    "refresh_token": "jSdVOtddMk8HMHP...",
    "id_token": "eyJraWQ..."
}

The response contains both a new access_token and a new refresh_token.
